Rapidlogger Weight Calibrator - Load Cell Checker
The Rapidlogger Weight Calibrator is a portable reference weight system for coiled tubing units. It hangs in line between the injector head and the tubing connector and gives an independent, calibrated reading of the tubing weight. Comparing this reading with the weight indicator on the unit verifies the calibration of the injector head load cell, hydraulic or electronic.

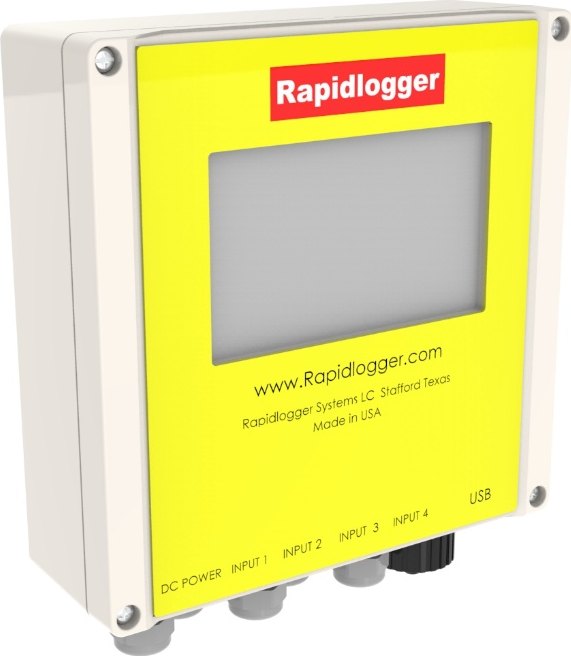

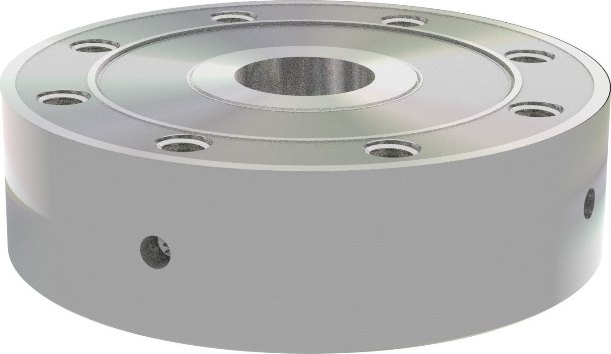

The system consists of a Rapidlogger SE display unit, a calibrated stainless steel load cell with a NIST traceable certificate, a load plate and a coiled tubing connector adapter, in a foam lined carrying case. The operator reads the weight directly on the display. No PC or training is needed.
The load plate and connector adapter are machined to suit the customer's tubing size and connector so the calibrator hangs square under the injector head. The load cell is rated for tension and compression, so snubbing loads can be verified as well.
The calibrator complements the Rapidlogger coiled tubing job monitoring system, which records the weight channel during the job.
Highlights
- The reference load cell is independent of the injector load cell, so the check is a true verification and not a comparison of two readings from the same sensor.
- The load cell can be returned for periodic recertification.
- Each verification is time stamped and recorded on the SD memory card, giving a permanent record for the job file.
- The unit can also serve as a back-up weight indicator.
- With a Rapidlogger data acquisition system the weight channel can be corrected on the spot with a two point calibration.
| Tubing Sizes: | 1" to 2-3/8" |
| Operating Temperature: | -40C to 70C |
| Operating Environment: | NEMA 4X |
| Display: | LCD with backlight |
| Computer Interface: | Serial, Ethernet, WiFi |
| Power: | 12/24 VDC, 110/240 VAC |
| Job Memory: | 16 GB |
