Data from the Rapidlogger Unit can be sent to a Schlumberger (SLB) computer using the Datascribe format.

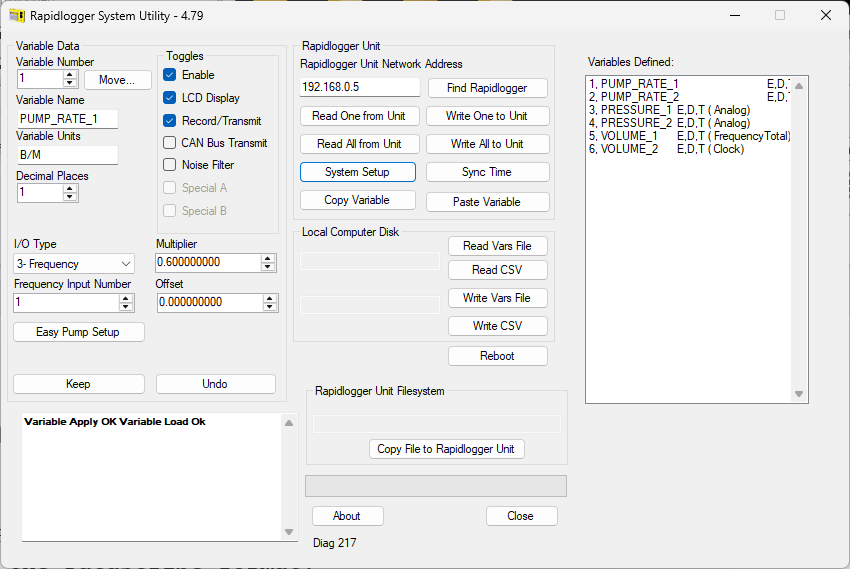

Open Rapidlogger System Utility and click "System Setup."

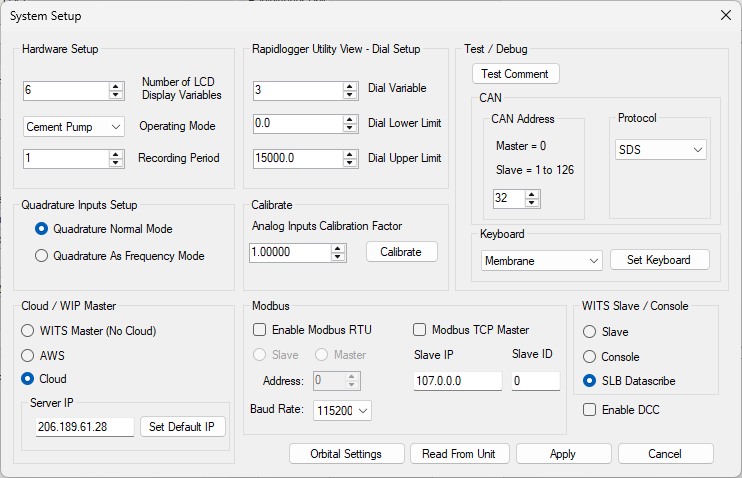

Figure 1: System Setup
Select the Slave format "SLB Datascribe" and press Apply.
Now the default IP Address of the Rapidlogger is usually 192.168.0.5 and the port address for Rapidlogger Datascribe output is 5002.

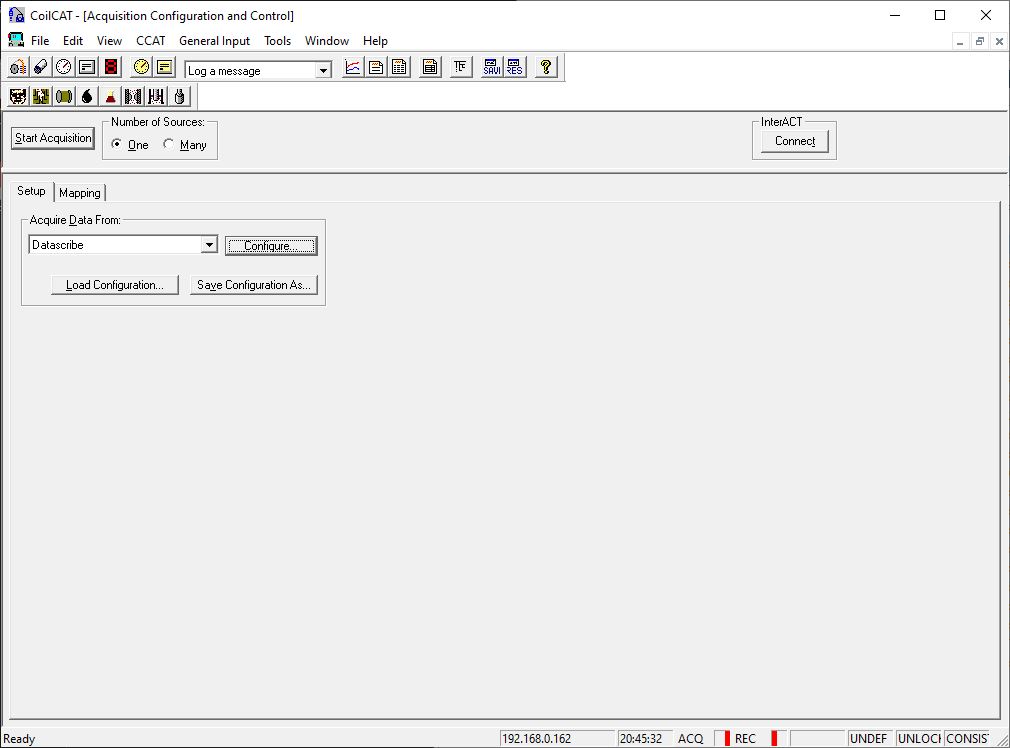

Start CoilCAT or CemCAT or FracCAT
Select acquisition source as Datascribe / Network. Then press Configure button

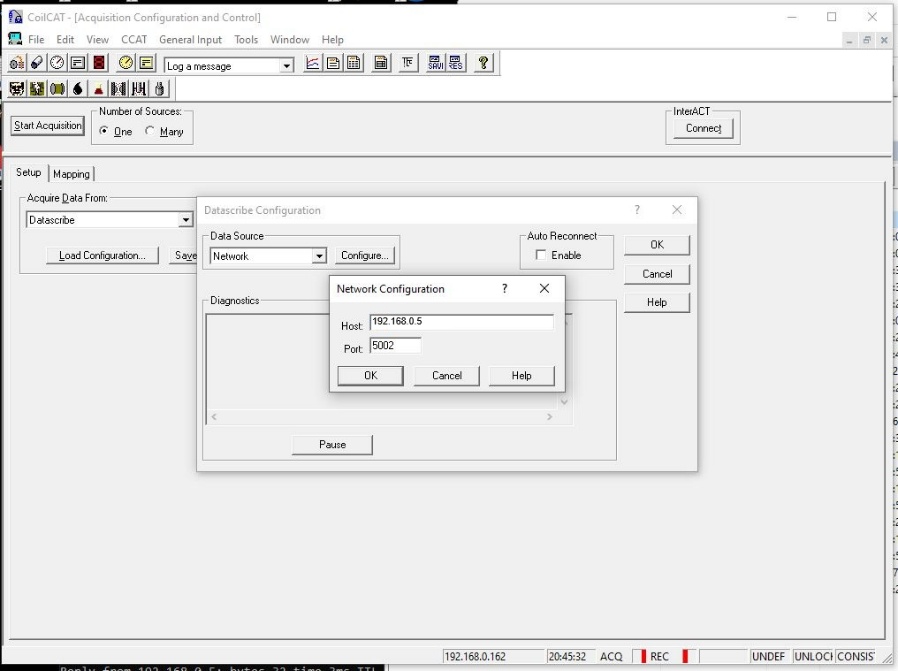

Enter the IP address and port number for the Rapidlogger.

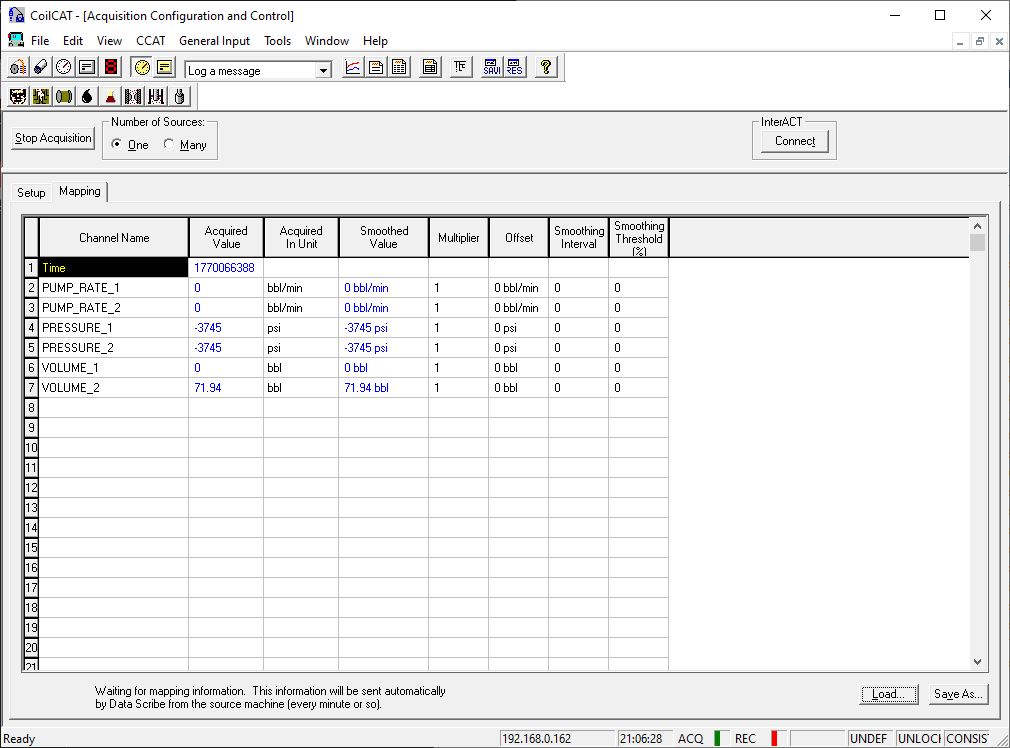

Press START ACQUISITION and then switch to the MAPPING tab
You should see the following format data
Rapidlogger to Datascribe connection is complete.
